用途：

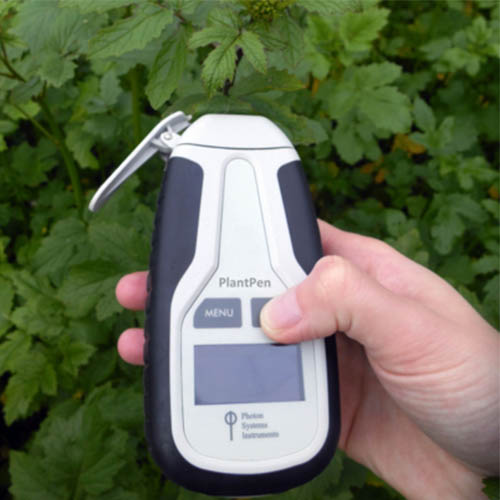

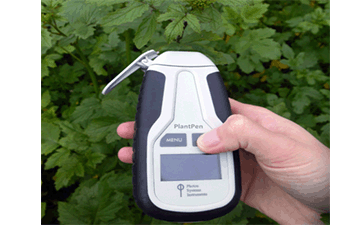

PlantPen植物NDVI測量?jī)x是一款設計精巧、可快速測量植物NDVI指數的便攜式儀器。根據植物的光譜反射系數可以評定葉片葉綠素相對含量。

NDVI(歸一化植被指數)是通過計算植物葉片對660 nm和740 nm兩種波長光的吸收和反射關系計算得到的值，反應植物葉綠素含量的重要參數。一個方便的葉夾、簡單的兩鍵操作以及明亮的顯示屏使得PlantPen在不干擾測量植物（無葉片脫落或損壞）下仍方便使用。

有兩個版本：測量PRI（光化學反射植被指數）的PRI 210和測量NDVI（歸一化植被指數）的NDVI 310。PRI是測量植物在530nm和590nm處反射率的參數，這兩個波段的光譜反射率受葉黃質循環和影響，并影響植物的光能利用效率。

測量數據存儲于儀器內部，可選擇藍牙或USB數據線與計算機連接，使用專業FluorPen軟件進行數據傳輸和可視化分析。

特點：

設計緊湊、堅固的PRI非常適用于野外環境、植物溫室等；

 手持葉夾，雙鍵操作，LED顯示屏設計，使用方便；

非侵入式無損測量；

內置鋰電池供電，方便耐用；

USB或藍牙傳輸數據，專業軟件進行可視化分析；

應用領域：

光合作用教學與研究；

植物分子生物學；

植物的篩選和實地研究；

逆境生理；

農學與林業；

技術規格：

案例分析：

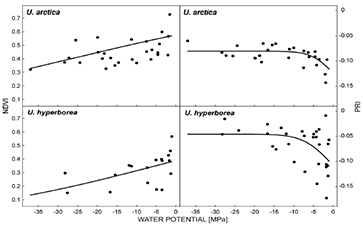

案例一：兩種石耳在失水狀態下的光譜反射率和光合效率研究

 對于NDVI, Umbilicaria arctica和Umbilicaria hyperborea隨著水勢的變化有相同的變化趨勢，均隨著水勢降低而降低，但兩物種之間存在差異。完全水化的U. arctica的NDVI在0.55-0.75之間，U. hyperborea的NDVI比較低，在0.30-0.55之間；脫水后的U. arctica在0.55-0.30之間，而U. hyperborea在0.30-0.15之間。

近期發表文獻：

CALDERóN R., LUCENA C., TRAPERO-CASAS J. L. ET. AL. (2014): Soil temperature determines the reaction of olive cultivars to Verticillium dahliae pathotypes. PLoS One. Volume 9. DOI:10.1371/journal.pone.0110664

CALDERóN, R., ZARCO-TEJADA, P.J., LUCENA, C. ET AL. (2013):High-resolution airborne hyperspectral and thermal imagery for pre-visual detection of Verticillium wilt using fluorescence, temperature and narrow-band indices, Remote Sensing of Environment. Volume 139 Pages, 231-245. DOI:10.1016/j.rse.2013.07.031

ZARCO-TEJADA P.J., GUILLEN-CLIMENT M.L., HERNANDEZ-CLEMENTE R. ET AL. (2013): Estimating leaf carotenoid content in vineyards using high resolution hyperspectral imagery acquired from an unmanned aerial vehicle. Agricultural and Forest Meteorology 171-172. Pages. 281-294. DOI:10.1016/j.agrformet.2012.12.013

JUPA R., HáJEK J., HAZDROVá J. ET AL. (2012): Interspecific differences in photosynthetic efficiency and spectral reflectance in two Umbilicaria species from Svalbard during controlled desiccation. Czech Polar Reports, Brno, Volume 2, Pages 31-41. DOI: 10.5817/CPR2012-1-4

KOVáR, M., VEVERKOVá, E. AND ?ERNY, I. (2012): Utilization of Enfrared Thermography and Leaf Reflectance Indices in Evaluation of Effects of the Treatment of Sunflower (Helianthus annuus L.) by Biologically Active Compounds. Acta fytotechnica et zootechnica. Volume 15, Pages 23-28

SHRESTHA S., BRUECK H. AND ASCH F. (2012): Chlorophyll index, photochemical reflectance index and chlorophyll fluorescence measurements of rice leaves supplied with different N levels. Journal of Photochemistry and Photobiology B: Biology. Volume 113, Pages 7–13. DOI:10.1016/j.jphotobiol.2012.04.008

ZARCO-TEJADA P.J., GONZALES-DUGO V. AND BERNI J.A.J. (2012):Fluorescence, temperature and narrow-band indices acquired from a UAV platform for water stress detection using a micro-hyperspectral imager and a thermal camera. Remote Sensing of Environment. Volume, 117. Pages 322-337. DOI:10.1016/j.rse.2011.10.007

CHYTYK, C. J., HUCL, P. J. AND GRAY, G. R. (2011): Leaf photosynthetic properties and biomass accumulation of selected western Canadian spring wheat cultivars. Canadian Journal of Plant of Science. Volume 91, Pages 305-314. DOI: 10.4141/CJPS0916.

產地：捷克
